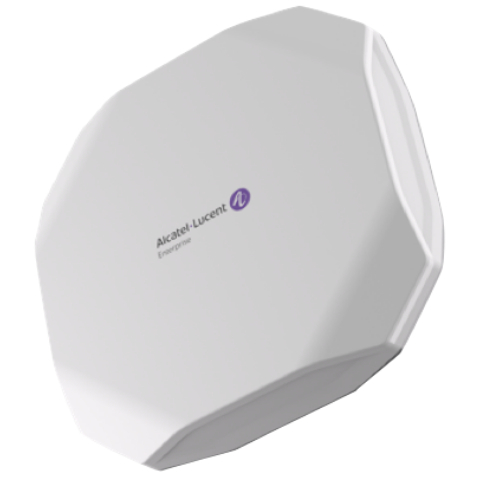

Stellar Access Point 1320

Description

Radio Specification
• AP type: Indoor, integrated four radios
• Dual Radio, 5 GHz 802.11ax 4×4:4 and 2.4 GHz 802.11ax 2×2:2
¬ 5 GHz: 4×4:4 up to 2.4Gbps wireless data rate to individual 4SS HE80 802.11ax client devices. 2.4 GHz: 2×2:2 up
to 573Mbps wireless data rate to individual 2SS HE40 802.11ax client devices.
• Supported frequency bands (country-specific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz
• Available channels: Dependent on configured regulatory domain
• Brazil: Maximum transmit power: 30dBm on 2.4GHz, 30dBm on 5GHz
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
¬ 21dBm on 2.4GHz (18dBm per chain)
¬ 24dBm on 5GHz (18dBm per chain)
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Short guard interval for 20-MHz, 40-MHz, 80-MHz, and 160(80+80)-MHz channels
• Transmit beamforming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mbps):
¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
¬ 802.11n(2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
¬ 802.11n(5GHz): 6.5 to 600 (MCS0 to MCS31, HT20 to HT40)
¬ 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT80; NSS=2, VHT160(80+80))
¬ 802.11ax(2.4GHz): 3.6 to 573 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
¬ 802.11ax(5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE80; NSS=2, HE160(80+80))
• Supported modulation types:
¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
¬ 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80/160(80+80)
• 802.11ax high efficiency (HE) support: HE 20/40/80/160(80+80)
• Advanced Cellular Coexistence (ACC)
¬ Minimizes interference from 3G/4G cellular networks, distribut-ed antenna systems, and commercial small cell/
femtocell equipment
• Full band 1×1 radio, dedicated for scanning
• Bluetooth Low Energy (BLE) 5.1/ Zigbee radio, integrated antenna
¬ Bluetooth 5.1: up to 18dBm transmit power (class 1) and -93dBm receive sensitivity
¬ Zigbee: up to 18dBm transmit power and -102dBm receive sensitivity
¬ Integrated omnidirectional antenna with peak gain of 3.2dBi

Interfaces
• 1x 10BASE-Te/100BASE-TX/1000BASE-T/2500BASE-T IEEE 802.3 compliant autosensing (RJ-45) port, ENET0,
Power over Ethernet (PoE) 802.3at compliant
• 1x 10/100/1000 BASE-T IEEE 802.3 compliant auto-sensing (RJ-45) port, ENET1, Power over Ethernet (PoE)
802.3at compliant
• 1x USB 2.0 Type A (5V, 500mA)
• Reset button: Factory reset

Visual Indicators (Tri-color LED)
• For system and radio status
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running, no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing
¬ System running, use for location of an AP

Security
• Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys
• 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE), Enhanced Open (OWE)
• 802.1X
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista
• Portal page authentication

Antenna
• AP1321: 2×2:2 @ 2.4GHz, 4×4:4 @ 5GHz
¬ Integrated omni-directional antennas with maximum antenna gain of 3.5dBi in 2.4 GHz and 3.7dBi in 5 GHz
• AP1322: 2×2:2 @ 2.4GHz, 4×4:4 @ 5GHz
¬ 4 RP-SMA female external antenna connectors
¬ ANT0-ANT1 are dual band antenna connectors, ANT2-ANT3 are 5GHz antenna connectors

Receive sensitivity (per chain)
2.4 GHz 5 GHz
1 Mbps -99
11 Mbps -90
6 Mbps -93 -93
54 Mbps -77 -77
HT20(MCS 0/8) -93 -93
HT20(MCS 7/15) -76 -74
HT40(MCS 0/8) -91 -90
HT40(MCS 7/15) -74 -71
VHT20(MCS 0) -93 -93
VHT20(MCS 8) -72 -70
VHT40(MCS 0) -91 -90
VHT40(MCS 9) -68 -66
VHT80(MCS0) -87
VHT80(MCS9) -62
HE20(MC0) -94 -93
HE20(MC11) -65 -65
HE40(MC0) -91 -91
HE40(MC11) -62 -62
HE80(MC0) -88
HE80(MC11) -59

Maximum Transmit power (per chain)
2.4 GHz 5 GHz
1 Mbps 18 dBm
11 Mbps 18 dBm
6 Mbps 17 dBm 18 dBm
54 Mbps 16 dBm 16 dBm
HT20(MCS 0/8) 17 dBm 17 dBm
HT20(MCS 7/15) 14 dBm 15 dBm
HT40(MCS 0/8) 17 dBm 17 dBm
HT40(MCS 7/15) 14 dBm 15 dBm
VHT20(MCS 0) 17 dBm 17 dBm
VHT20(MCS 8) 14 dBm 15 dBm
VHT40(MCS 0) 17 dBm 17 dBm
VHT40(MCS 9) 14 dBm 15 dBm
VHT80(MCS0) 17 dBm
VHT80(MCS9) 15 dBm
HE40 (MCS11) 12 dBm 13 dBm
HE80 (MCS11) 13 dBm

Power
• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source:
¬ 48 V DC nominal, +/- 5%
• Power over Ethernet (PoE):
¬ IEEE 802.3af/at compliant source
• Maximum (worst case) power consumption:
¬ 24.8W (input IEEE 802.3at POE); Unrestricted functionality
¬ 11W (input IEEE 802.3af POE); The USB port is disabled, and both Wi-Fi radios will operate in 2×2:2 mode
• Maximum power consumption in idle mode:
¬ 9W

Mounting
• Ceiling/wall mounting (Mount kit needs to be ordered separately)
Environmental • Operating:
¬ Temperature: 0°C to 50°C (-32°F to +122°F)
¬ Humidity: 5% to 95% non-condensing
• Storage and transportation: Temperature: -40°C to +70°C (-40°F to +158°F)

Dimensions/Weight
• Single AP excluding packing box and accessories:
¬ 180mm (W) x 180mm (D) x 36mm (H) – 7.08” (W) x 7.08” (D) x 1.41” (H)
¬ 751g/1.66lb
• Single AP including packing box and accessories:
¬ 228mm (W) x 198mm (D) x 66mm (H) – 8.97” (W) x 7.79” (D) x 2.59” (H)
¬ 978g/2.16lb

Reliability
• MTBF: 1,104,490h (126.08 years) at +25ºC operating temperature

Capacity
• Up to 16 SSID per radio (total 32 SSID)
• Support for up to 1024 associated client devices

Software feature
• Up to 4K APs when managed by OV2500. No limit on number of AP groups
• Up to 255 APs per web managed (HTTP/ HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista 2500
• Captive portal (Internal/External)
• Guest self-registration optional SMS notification) with OmniVista 2500
• Internal user database
• RADIUS client
• Guest social-login with OmniVista 2500
• RADIUS proxy authentication with OmniVista 2500
• LDAP/AD proxy authentication with OmniVista 2500
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP)
• NTP Client
• ACL
• DHCP/DNS/NAT
• Wireless MESH P2P/P2MP
• Wireless Bridge
• Rogue AP location and containment
• Dedicated Scanning AP
• System log report
• SSHv2
• SNMPv2
• Wireless attack detection with OmniVista 2500
• Floor plan and heat map with OmniVista 2500
• Stanley Healthcare/Aeroscout RTLS support

IEEE standard
• IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.11e WMM, U-APSD
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.1Q (VLAN Tagging)
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast roaming

Regulatory & certification
• CB Scheme Safety, cTUVus
• Wi-Fi CERTIFIED Wi-Fi 6, Enhanced Open™, Passpoint®, Agile Multiband (MBO)
• FCC
• CE Marked
• EN 60601-1-1 & EN 60601-1-2
• Bluetooth SIG
• RoHS, REACH, WEEE
• EMI and susceptibility (Class B)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 55032
• IEC/EN 60950
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
