Stellar Acces Points 1230 Series

Description

Radio specification
• AP type: Indoor, tri radio, dual 5 GHz 802.11ac 4×4:4 MU-MIMO and 2.4 GHz 802.11n 4×4:4 MIMO
• 5 GHz: Four spatial stream multi user (MU) MIMO for up to 1733 Mb/s wireless data rate to up to three MU-MIMO capable client devices
• 5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mb/s wireless data rate to individual 4×4 VHT80 or 2×2 VHT160* client devices
• 2.4 GHz: Four spatial stream single user (SU) MIMO for up to 800 Mb/s wireless data rate to individual 4×4 VHT40 client devices (600 Mb/s for HT40 802.11n client devices)
• Supported frequency bands (country specific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz
• Available channels: Dependent on configured regulatory domain
• DFA (dynamic frequency adjustment) optimizes available channels and provides proper transmission power
• Short guard interval for 20 MHz, 40 Mhz, 80 Mhz and 160* Mhz channels
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mb/s):
¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
¬ 802.11n: 6.5 to 600 (MCS0 to MCS31)
¬ 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160*)
• Supported modulation types:
¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK, 16- QAM, 64-QAM, 256-QAM
¬ 802.11n high-throughput (HT) support: HT 20/40
¬ 802.11ac very high throughput (VHT) support: VHT 20/40/80/160*
• BLE5.0:2.4 GHz, Maximum Transmit power 19 dBm
• Advanced Cellular Coexistence (ACC) Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/ femtocell equipment

Interfaces
• 1x 100/1000/2500Base-T autosensing (RJ-45) port, Power over Ethernet (PoE)
• 1x 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE)
• 1x Bluetooth Low Energy (BLE) radio, integrated antenna
¬ 9.5 dBm transmit power (typical, basic rate)
¬ -92.5 dBm(Typical) receive sensitivity
• 1x USB 2.0 (Type A connector)
• 1x management console port (RJ-45)
• Reset button: Factory reset
• Kensington security slot
• AP1232: 8x RP-SMA Antenna connectors Visual Indicators (Tri-color LEDs)
• For system and radio status
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running, no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing: System running, use for location of an AP

Antenna
• AP1231: Built-in 4×4:4 @ 2.4 GHz, dual 4×4:4 @ 5 GHz
¬ Integrated dual-band tri-radio down tilt omni-directional antennas for 4×4 MIMO with maximum antenna gain of 4.38 dBi in 2.4 GHz and 4.47 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceilingmounted orientation of the AP.

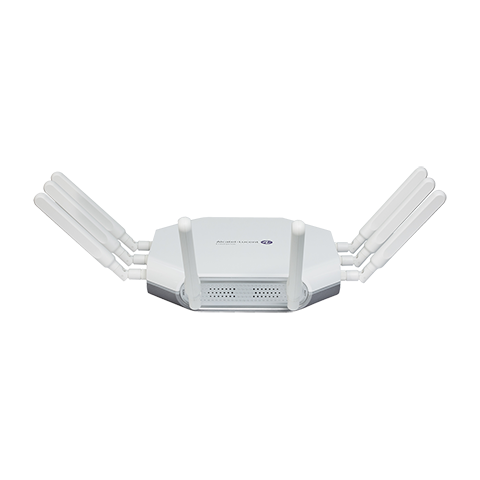

• AP1232: External 4×4:4 @ 2.4 GHz, dual 4×4:4 @ 5 GHz 8 RP-SMA connectors for external dual band antennas.
• Optional external antenna(sold separately)
¬ Offers broad selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Receive sensitivity (per chain)
2.4 GHz 5 GHz
1 Mb/s -96
11 Mb/s -88
6 Mb/s -92 -89
54 Mb/s -74 -72
HT20 (MSC 0/8) -91 -89
HT20 (MSC 7/15) -71 -68
HT40 (MSC 0/8) -88 -86
HT40 (MSC 7/15) -68 -66
VHT20 (MSC 0) -91 -89
VHT20 (MSC 8) -67 -65
VHT40 (MSC 0) -88 -86
VHT40 (MSC 9) -63 -61
VHT80 (MCS0) -83
VHT80 (MCS9) -56
VHT160* (MCS0) -82
VHT160* (MCS9) -56

Maximum Transmit power
(per chain)
2.4 / 5 GHz
1 Mb/s 18 dBm
11 Mb/s 18 dBm
6 Mb/s 18 dBm /18 dBm
54 Mb/s 17 dBm /17 dBm
HT20 (MSC 0/8) 18 dBm/ 18 dBm
HT20 (MSC 7/15) 16 dBm /17 dBm
HT40 (MSC 0/8) 18 dBm /18 dBm
HT40 (MSC 7/15) 16 dBm /17 dBm
VHT20 (MSC 0) 18 dBm/ 18 dBm
VHT20 (MSC 8) 16 dBm /17 dBm
VHT40 (MSC 0) 18 dBm /18 dBm
VHT40 (MSC 9) 15 dBm /15 dBm
VHT80 (MCS0) /18 dBm
VHT80 (MCS9) /15 dBm
VHT160* (MCS0) / 18 dBm
VHT160* (MCS9) / 15 dBm

Power
• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Maximum (worst case) power consumption:
¬ 27.6 W (PoE or DC)
¬ Excludes power consumed by external USB device; USB with 500mA load can add up to 2.9 W
¬ Maximum power consumption in idle mode: 13.5 W
¬ Maximum power consumption in idle mode: 13.5 W
• Direct DC source: 48 V DC nominal, ±5%
• Power over Ethernet (PoE):
¬ 48 V DC (nominal) 60W/802.3at compliant source; If PoE PSE side does not support LLDP, AP would be powered by 30W/802.3at
¬ Unrestricted functionality with 802.3 at High PoE (4-pair)
¬ The USB port is disabled and all the three radio will operate in 2×2:2 mode when the AP is powered by 30W 802.3at PoE source.

Mounting
• The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16- inch flat T-bar droptile ceiling.
• Optional mount kits for Open Silhouette and Flanged Interlude.
• Optional mount kits for flat-surface (wall).

Environmental
• Operating:
¬ Temperature: 0°C to 45°C (+32°F to +113°F)
¬ Humidity: 5% to 90% noncondensing
• Storage and transportation:
¬ Temperature: -40°C to +70°C (-40°F to +158°F)
Dimensions/Weight
• Single AP excluding packing box and accessories:
¬ 230 mm (W) x 230 mm (D) x 47 mm (H) -9.05” (W) x 9.05” (D) x 1.85” (H)
¬ 1400 g/3.08 lb
• Single AP including packing box and accessories:
¬ 283 mm (W) x 267 mm (D) x 80 mm (H) 11.14” (W) x 10.51” (D) x 3.14” (H)
¬ 1775 g/3.91lb

Reliability
MTBF: 534,683h (61.03 years) at +25ºC
operating temperature

Capacity
• Up to 8 SSID per radio (total 24 SSID)
• Support for up to 768 associated client devices per AP

Software features
• Up to 4K APs when managed by OmniVista 2500 managed. No limit on the number of AP groups
• Up to 255 APs per web managed (HTTP/ HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista 2500
• Captive portal (Internal/External)
• Guest self-registration (optional SMS notification) with OmniVista 2500
• Internal user database
• Radius client
• Guest social-login with OmniVista 2500
• RADIUS proxy authentication OmniVista 2500
• LDAP/AD proxy authentication OmniVista 2500
• Wireless QoS
• Band steering
• Client based smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP)
• NTP server client
• ACL
• DHCP/DNS/NAT
• Wireless MESH P2P/P2MP
• Wireless Bridge
• Rogue AP location and containment
• System log report
• Dedicated Scanning AP
• SSHv2
• SNMPv2
• SNMP Trap Notification with OmniVista 2500
• Wireless attack detection with OmniVista 2500
• Floor plan and heat map with OmniVista 2500
• Stanley Healthcare/Aeroscout RTLS support

Security
• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, AES 128-256 bits
• 802.1X
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista™
• Portal page authentication
• Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys IEEE standard
• IEEE 802.11a/b/g/n/ac Wave 2
• IEEE 802.11e WMM, U-APSD
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.1Q (VLAN tagging)
• IEEE 802.3ad LACP
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast Roaming

Regulatory & certification
• CB Scheme Safety, cTUVus
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
• FCC
• CE marked
• RoHS, REACH, WEEE
• UL2043 (plenum rated)
• EMI and susceptibility (Class B)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 55032
• IEC/EN 60950
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
