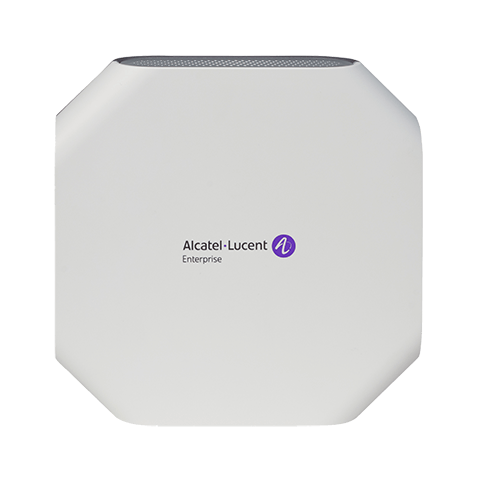

Stellar Acces Points 1220 Series

Description

Radio specification
• AP type: Indoor, dual radio, 5 GHz 802.11ac 4×4:4 MU-MIMO and 2.4 GHz 802.11n 2×2:2 MIMO
• 5 GHz: Four spatial stream single user (SU) MIMO for up to 1733 Mb/s wireless data rate to individual 4×4 VHT80 or 2×2
VHT160* client devices
• 5 GHz: Four spatial stream multi user (MU) MIMO for up to 1733 Mb/s wireless data rate to up to three MU-MIMO capable
client devices simultaneously
• 2.4 GHz: Two spatial stream single user (SU) MIMO for up to 400 Mb/s wireless data rate to individual 2×2 VHT40 client
devices (300 Mb/s for HT40 802.11n client devices)
• Supported frequency bands (countryspecific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz
• Frequencies fixed at factory for Middle East models OAW-AP1221-ME and OAW-AP1222-ME
2400 – 2483.5 MHz
5150 – 5350 MHz
• Available channels: Dependent on configured regulatory domain
• DFA (dynamic frequency adjustment) optimizes available channels and provides
proper transmission power • Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz* channels
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mb/s):
¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
¬ 802.11n: 6.5 to 600 (MCS0 to MCS31)
¬ 802.11ac: 6.5 to 1,733 (MCS0 to MCS9,
NSS = 1 to 4 for
¬ VHT20/40/80, NSS = 1 to 2 for VHT160)*
• Supported modulation types:
¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80/160*
• Advanced Cellular Coexistence (ACC) Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/ femtocell equipment

Interfaces
• 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE)
• 1× USB 2.0 (Type A connector)
• 1× management console port (RJ-45)
• Reset button: Factory reset
• Kensington security slot
• AP1222: 4x RP-SMA antenna connectors

Visual Indicators (Tri-color LEDs)
• For system and radio status
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running, no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing: System running, use for location of an AP

Antenna
• AP1221: Built-in 2×2:2 @ 2.4 GHz, 4×4:4 @ 5 GHz
¬ Integrated dual-band down tilt omnidirectional antennas for 4×4 MIMO with maximum antenna gain of 3.61 dBi in
2.4 GHz and 4.45 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP.
• AP1222 External 2×2:2 @ 2.4 GHz, 4×4:4 @ 5 GHz
¬ Four RP-SMA connectors for external dual band antennas.
• Optional external antenna (sold separately)
¬ Offer includes broad selection of antennas, delivering optimal coverage for a variety of deployment scenarios.

Receive sensitivity (per chain)
2.4 GHz 5 GHz
1 Mb/s -96
11 Mb/s -88
6 Mb/s -92 -91
54 Mb/s -74 -74
HT20 (MSC 0/8) -91 -91
HT20 (MSC 7/15) -71 -70
HT40 (MSC 0/8) -88 -88
HT40 (MSC 7/15) -68 -68
VHT20 (MSC 0) -91 -91
VHT20 (MSC 8) -67 -67
VHT40 (MSC 0) -88 -88
VHT40 (MSC 9) -63 -63
VHT80 (MCS0) -85
VHT80 (MCS9) -58
VHT160* (MCS0) -84
VHT160* (MCS9) -58

Maximum transmit power (per chain)
2.4 GHz 5 GHz
1 Mb/s 18 dBm
11 Mb/s 18 dBm
6 Mb/s 18 dBm 18 dBm
54 Mb/s 17 dBm 17 dBm
HT20 (MSC 0/8) 18 dBm 18 dBm
HT20 (MSC 7/15) 16 dBm 17 dBm
HT40 (MSC 0/8) 18 dBm 18 dBm
HT40 (MSC 7/15) 16 dBm 17 dBm
VHT20 (MSC 0) 18 dBm 18 dBm
VHT20 (MSC 8) 16 dBm 17 dBm
VHT40 (MSC 0) 18 dBm 18 dBm
VHT40 (MSC 9) 15 dBm 16 dBm
VHT80 (MCS0) 18 dBm
VHT80 (MCS9) 16 dBm
VHT160* (MCS0) 18 dBm
VHT160* (MCS9) 16 dBm
Note: Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by
local regulatory settings.

Power
• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Maximum (worst case) power consumption:
¬ <15.6 W (802.3at PoE or DC)
¬ Excludes power consumed by external USB device; USB with 500mA load can add up to 2.9 W
¬ Maximum power consumption in idle mode: 7.5 W
• Direct DC source: 48 V DC nominal, ± 5%
• Power over Ethernet (PoE):
¬ 48 V DC (nominal) 802.3af/802.3at compliant source
¬ Unrestricted functionality with 802.3at PoE
¬ The USB port is disabled and the 5 GHz radio is restricted to 2*2:2 when the AP is powered by 802.3af PoE source

Mounting
• The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16- inch flat T-bar drop-tile ceiling.
• Optional mount kits for Open Silhouette and Flanged Interlude.
• Optional mount kits for flat-surface (wall). Environmental
• Operating:
¬ Temperature: 0°C to 45°C (+32°F to +113°F)
¬ Humidity: 10% to 90% non-condensing
• Storage and transportation:
¬ Temperature: -40°C to +70°C (-40°F to +158°F)

Dimensions/Weight
• Single AP excluding packing box and accessories:
¬ 180 mm (W) x 180 mm (D) x 36 mm (H)
-7.08” (W) x 7.08” (D) x 1.41” (H)
¬ 700 g/1.54 lb
• Single AP including packing box and accessories:
¬ 228 mm (W) x 198 mm (D) x 66 mm (H)
-8.97” (W) x 7.79” (D) x 2.59”(H)
¬ 920 g/2.02 lb

Reliability
• MTBF: 916,666h (104.6 years) at +25ºC
operating temperature

Capacity
• Up to 8 SSID per radio (total 16 SSID)
• Support for up to 512 associated client devices

Software features
• Up to 512 APs when managed by OV2500. There is no limit on the number of AP groups
• Up to 64 APs per web-managed (HTTP/HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista 2500
• Captive portal
• Internal user database
• Radius client
• Wireless QoS
• Band steering
• Client based smart load balance
• White/black list
• Zero-touch provisioning (ZTP)
• NTP server client
• ACL
• Rogue AP location and containment
• System log report
• SNMP Trap Notification with OmniVista 2500
• Wireless attack detection with OmniVista 2500
• Floor plan and heat map with OmniVista 2500
Note: Some features are limited by local regulatory settings

Security
• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
• 802.1X
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista™
• Portal page authentication
• Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys

IEEE standard
• IEEE 802.11a/b/g/n/ac Wave 2
• IEEE 802.11e WMM
• IEEE 802.11h, 802.11i, 802.11e QoS
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast Roaming

Regulatory & certification
• CB Scheme Safety, cTUVus
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
• FCC
• CE marked
• RoHS, REACH, WEEE
• UL2043 plenum rating
• EMI and susceptibility (Class B)
