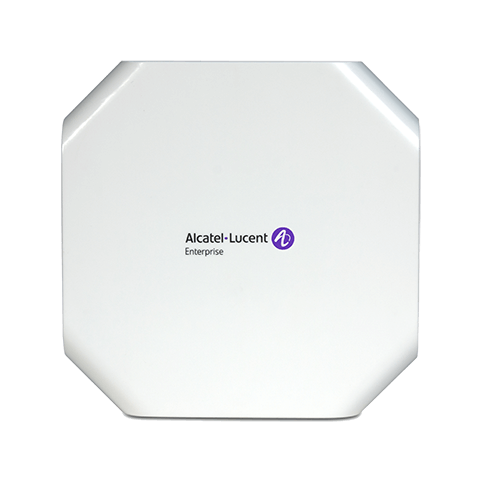

Stellar Acces Points 1201

Description

Radio specification
• AP type: Indoor, dual radio, 5 GHz 802.11ac 2×2:2 MU-MIMO and
2.4 GHz 802.11n 2×2:2 MIMO
• 5 GHz: Two spatial stream single user (SU) /multi user (MU) MIMO for up to 867 Mb/s wireless data rate
• 2.4 GHz: Two spatial stream single user (SU) MIMO for up to 400 Mb/s wireless data rate to individual 2×2 VHT40 client devices (300 Mb/s for
HT40 802.11n client devices)
• Supported frequency bands (countryspecific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz
• Frequencies fixed at factory for Middle East models OAW-AP1201-ME 2400 – 2483.5 MHz 5150 – 5350 MHz
• Available channels: Dependent on configured regulatory domain
• DFA (dynamic frequency adjustment) optimizes available channels and provides proper transmission power
• Short guard interval for 20 MHz, 40 MHz, 80 MHz channels
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mb/s):
¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
¬ 802.11n: 6.5 to 300 (MCS0 to MCS31)
¬ 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

Supported modulation types:
¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80
• Maximum (aggregate, conducted) transmit power (limited by local regulatory settings):
¬ 2.4GHz: +21dBm (18 dBm per chain)
¬ 5GHz: +23dBm (20 dBm per chain) power 19 dBm
• Advanced Cellular Coexistence (ACC) Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/ femtocell equipment

BLE reception
• -103.3 dBm sensitivity at 125 kbit/s GFSK, 2.4 GHz
• -94.8 dBm sensitivity at 1 Mbit/s GFSK, 2.4 GHz
• -91.5 dBm sensitivity at 2 Mbit/s GFSK, 2.4 GHz
• -102.7 dBm sensitivity at 250 kbps DSSS-OQPSK, 2.4 GHz

Interfaces
• 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE)
• 1x Bluetooth Low Energy (BLE) 5.0 radio, integrated antenna. Hardware ready for Zigbee.
• 1× management console port (RJ-45)
• Reset button: Factory reset
• Kensington security slot

Visual Indicators (Tri-color LEDs)
• For system and radio status
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running, no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing: System running, use for location of an AP

Antenna
• AP1201: Built-in 2×2:2 @ 2.4 GHz, 2×2:2 @ 5 GHz, BLE antenna
¬ Integrated dual-band down tilt omni- directional antennas for 2×2 MIMO with maximum antenna gain of 4.7 dBi in 2.4 GHz and 4.6 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP.
¬ Integrated BLE antenna with peak gain 3.7dBi

Power
• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source:
¬ 48 V DC nominal, ± 5%
• Power over Ethernet (PoE):
¬ IEEE 802.3af/at compliant source
• Maximum (worst case) power consumption:
¬ 11 W (PoE or DC)
¬ 4.1 W in idle mode

Mounting
• The AP ships with two (white) mounting clips to attach to a 9/16- inch or 15/16- inch flat T-bar droptile ceiling.
• Optional mount kits for Open Silhouette and Flanged Interlude.
• Optional mount kits for flat-surface(wall).

Environmental
• Operating:
¬ Temperature: 0° C to 45° C (+32° F to +113° F)
¬ Humidity: 5% to 95% non-condensing
• Storage and transportation:
¬ Temperature: -40° C to +70° C (-40° F to +158° F)

Dimensions/Weight
• Single AP excluding packing box and accessories:
¬ 155 mm (W) x 155 mm (D) x 28 mm (H) -6.10” (W) x 6.10” (D) x 1.10” (H)
¬ 310 g/0.68 lb
• Single AP including packing box and accessories:
¬ 185 mm (W) x 172 mm (D) x 57 mm (H) -7.28” (W) x 6.77” (D) x 2.24”(H)
¬ 500 g/1.10 lb

Reliability
• MTBF: 1,143,213h (130.5 years) at +25ºC operating temperature

Capacity
• Support up to 8 SSID per radio. Total 16 SSIDs (HW ready to extend to 32 SSID)
• Support for up to 512 associated client devices per AP

Software features
• Up to 4K APs when managed by OV2500. There is no limit on the number of AP groups
• Up to 64 APs per web-managed (HTTP/ HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista 2500
• Captive portal (Internal/ External)
• Guest self-registration (optional SMS notification) with OmniVista
• Internal user database
• RADIUS client
• Guest social-login with OmniVista
• RADIUS proxy authentication OmniVista
• LDAP/AD proxy authentication OmniVista
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP)
• NTP server client
• ACL
• DHCP/DNS/NAT
• Wireless MESH P2P/P2MP
• Wireless Bridge
• Rogue AP location and containment
• Dedicated Scanning AP
• System log report
• SNMPv2
• SNMP Trap Notification with OmniVista 2500
• Wireless attack detection with OmniVista 2500
• Floor plan and heat map with OmniVista 2500
• Stanley Healthcare/Aeroscout RTLS support
Note: Some features are limited by local regulatory settings

Security
• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, AES 128-256 bits
• 802.1X
• WEP, Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista™
• Portal page authentication
• Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys IEEE standard
• IEEE 802.11a/b/g/n/ac Wave 2
• IEEE 802.11e WMM
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.1Q (VLAN tagging)
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast Roaming

Regulatory & certification
• CB Scheme Safety, cTUVus
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
• FCC
• CE marked
• RoHS, REACH, WEEE
• EN 60601-1-1 & EN 60601-1-2
• EMI and susceptibility (Class B)
• VCCI-CISPR 32:2016, CLASS B
