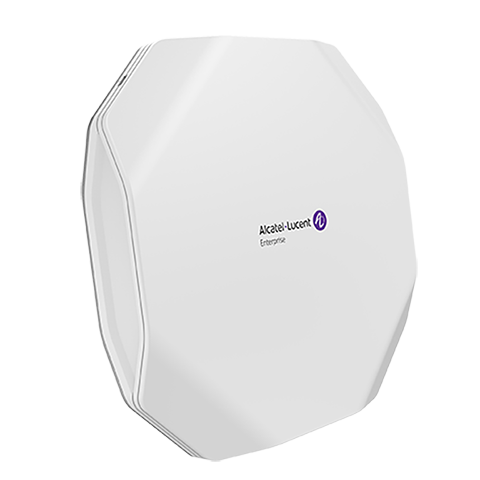

Wi-Fi 6E Alcatel-Lucent OmniAccess Stellar AP1431 Indoor Access Point (OAW-AP1431-RW)
| Model | AP1431 (OAW-AP1431-RW) |

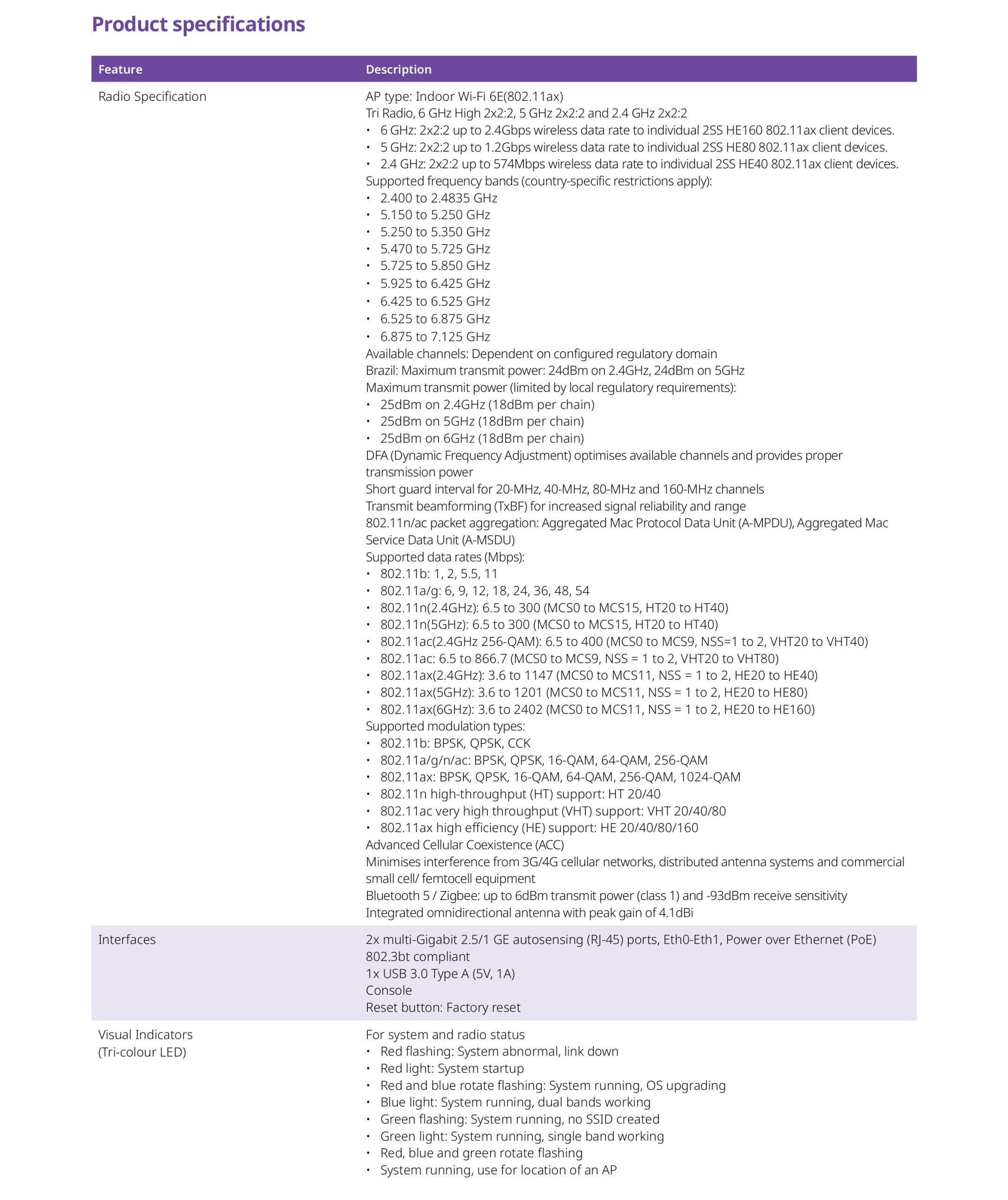

| Radio Specification | • AP type: Indoor Wi-Fi 6E (802.11ax) • Tri Radio, 6 GHz High 2×2:2, 5 GHz 2×2:2 and 2.4 GHz 2×2:2 • 6 GHz: 2×2:2 up to 2.4Gbps wireless data rate to individual 2SS HE160 802.11ax client devices. • 5 GHz: 2×2:2 up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices. • 2.4 GHz: 2×2:2 up to 574Mbps wireless data rate to individual 2SS HE40 802.11ax client devices. |
| Interfaces | • 2 x multi-Gigabit 2.5/1 GE autosensing (RJ-45) ports, Eth0-Eth1, Power over Ethernet (PoE) 802.3bt compliant • 1 x USB 3.0 Type A (5V, 1A) • Console • Reset button: Factory reset |
| Visual Indicators (Tri-colour LED) | For system and radio status • Red flashing: System abnormal, link down • Red light: System startup • Red and blue rotate flashing: System running, OS upgrading • Blue light: System running, dual bands working • Green flashing: System running, no SSID created • Green light: System running, single band working • Red, blue and green rotate flashing • System running, use for location of an AP |

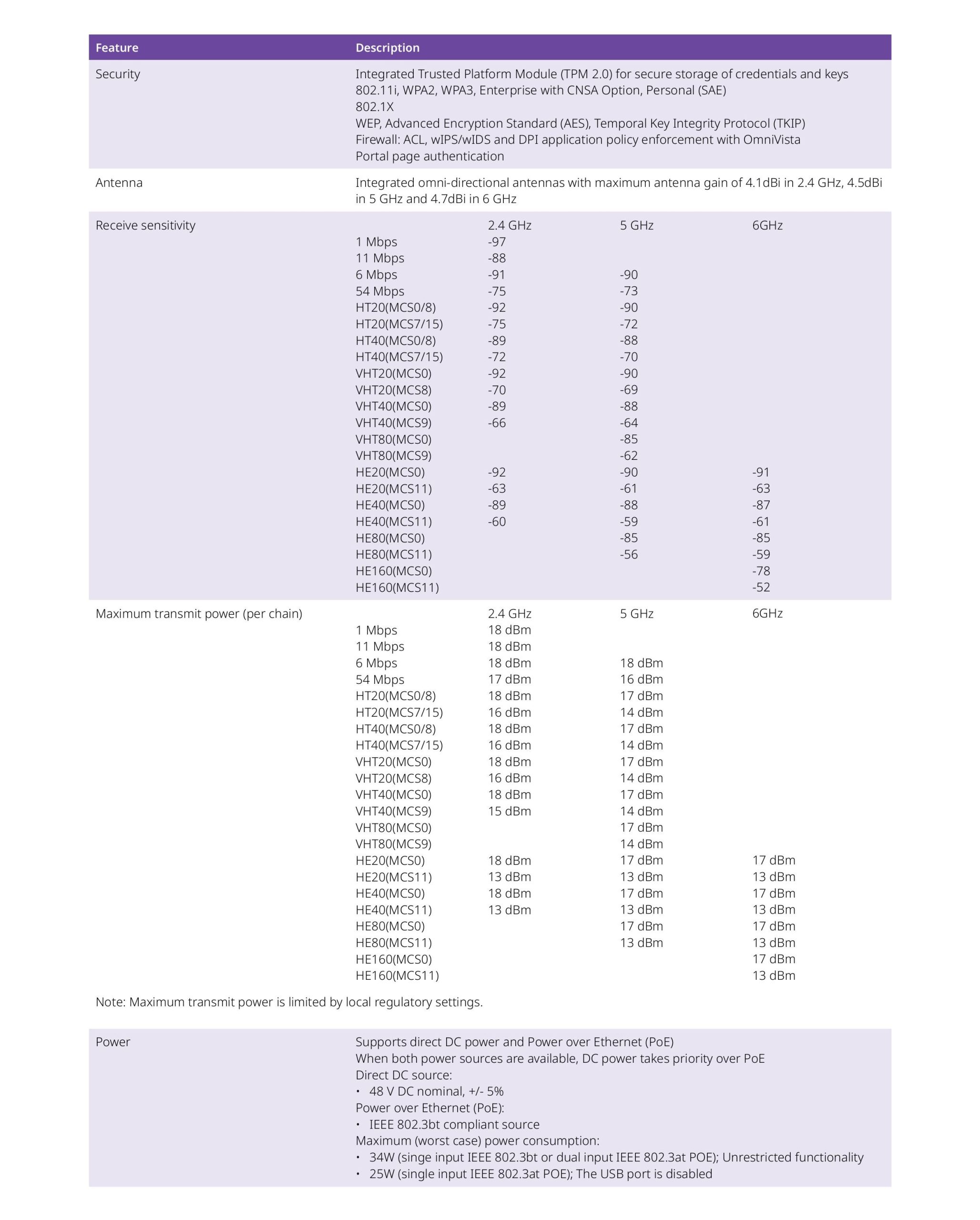

| Security | • Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys • 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE) • 802.1X • WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) • Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista Portal page authentication |
| Antenna | • Integrated omni-directional antennas with maximum antenna gain of 4.1dBi in 2.4 GHz, 4.5dBi in 5 GHz and 4.7dBi in 6 GHz |
| Power | • Supports direct DC power and Power over Ethernet (PoE) • When both power sources are available, DC power takes priority over PoE • Direct DC source: 48 V DC nominal, +/- 5% • Power over Ethernet (PoE): IEEE 802.3bt compliant source • Maximum (worst case) power consumption: – 34W (singe input IEEE 802.3bt or dual input IEEE 802.3at POE); Unrestricted functionality – 25W (single input IEEE 802.3at POE); The USB port is disabled |

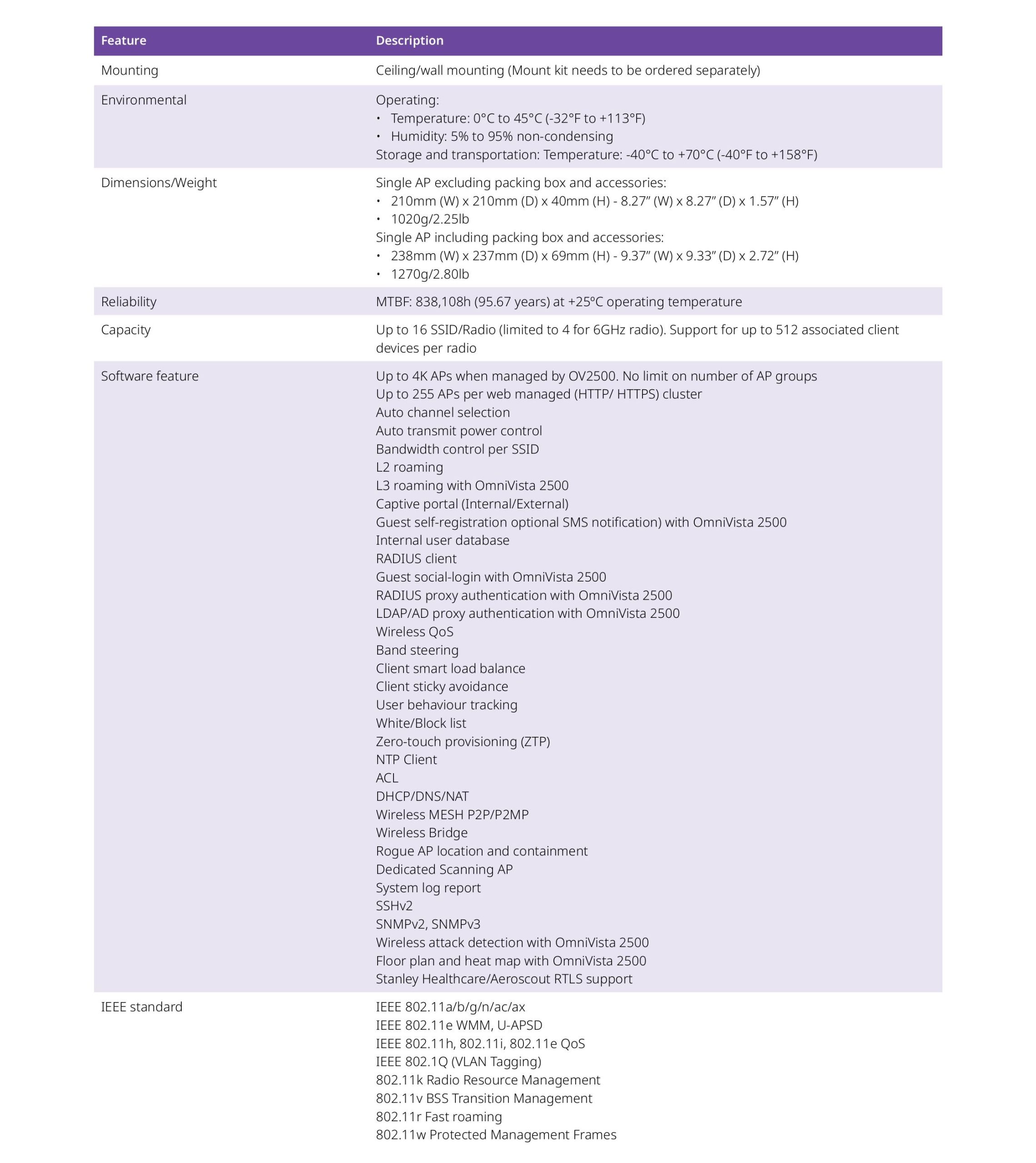

| Mounting | • Ceiling/wall mounting (Mount kit needs to be ordered separately) |
| Environmental | • Operating Temperature: 0°C to 45°C • Humidity: 5% to 95% non-condensing • Storage and transportation: Temperature: -40°C to +70°C |
| Dimensions/Weight | • Single AP excluding packing box and accessories: – 210mm (W) x 210mm (D) x 40mm (H) – 1020g • Single AP including packing box and accessories: – 238mm (W) x 237mm (D) x 69mm (H) – 1270g |
| Reliability | • MTBF: TBA at +25ºC operating temperature |
| Capacity | • Up to 16 SSID/Radio (limited to 4 for 6GHz radio). Support for up to 512 associated client devices per radio |
| Software feature | • Up to 4K APs when managed by OV2500. No limit on number of AP groups • Up to 255 APs per web managed (HTTP/ HTTPS) cluster • Auto channel selection • Auto transmit power control • Bandwidth control per SSID • L2 roaming • L3 roaming with OmniVista 2500 • Captive portal (Internal/External) • Guest self-registration optional SMS notification) with OmniVista 2500 • Internal user database • RADIUS client • Guest social-login with OmniVista 2500 • RADIUS proxy authentication with OmniVista 2500 • LDAP/AD proxy authentication with OmniVista 2500 • Wireless QoS • Band steering • Client smart load balance • Client sticky avoidance • User behaviour tracking • White/Block list • Zero-touch provisioning (ZTP) • NTP Client • ACL • DHCP/DNS/NAT • Wireless MESH P2P/P2MP • Wireless Bridge • Rogue AP location and containment • Dedicated Scanning AP • System log report • SSHv2 • SNMPv2, SNMPv3 • Wireless attack detection with OmniVista 2500 • Floor plan and heat map with OmniVista 2500 • Stanley Healthcare/Aeroscout RTLS support |
