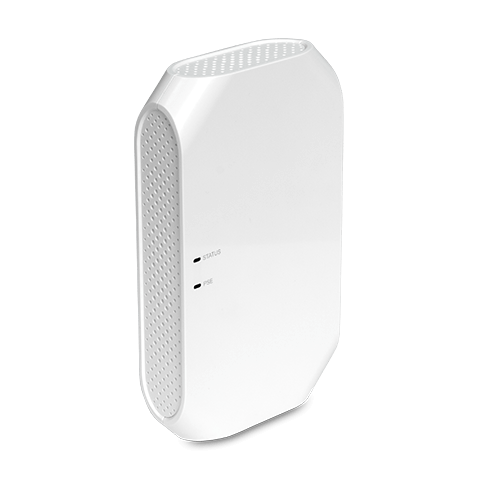

OmniAccess Stellar AP1201H

Description

Product specifications Radio specification
• AP type: Indoor, dual radio, 5 GHz 802.11ac 2×2:2 MU-MIMO, and 2.4 GHz 802.11n 2×2:2 MIMO
• 5 GHz: Two spatial stream multi user MU-MIMO for up to 867 Mb/s ,

wireless data rate, simultaneous data transmission for up to 2 devices
• 2.4 GHz: Two spatial stream single user (SU) MIMO for up to 300 Mb/swireless data rate to individual 2×2
HT40 client devices
• Supported frequency bands
(country- specific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz
• Frequencies fixed at factory for Middle East models
OAW-AP1201H-ME
¬ 2400 – 2483.5 MHz
¬ 5150 – 5350 MHz
• Available channels: Dependent on configured regulatory domain
• DFA (dynamic frequency adjustment) optimizes available channels and provides proper transmission power
• Short guard interval for 20 MHz, 40 MHz and 80 MHz channels
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service
Data Unit (A-MSDU)
• Supported data rates (Mb/s):
¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24, 36,
48, 54
¬ 802.11n: 6.5 to 300 (MCS0 to MCS15)
¬ 802.11ac: 6.5 to 867 (MCS0
to MCS9, NSS = 1 to 2 for
VHT20/40/80)
• Supported modulation types:
¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK,16-QAM, 64-QAM, 256-QAM
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT)
support: VHT 20/40/80

Interfaces
• Uplink: 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE)
• Downlink: 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE-PSE) 802.3af compliant
• Downlink: 2× 10/100/1000Base-T autosensing downlink port
• Passive Pass through one pair, back and bottom
• 1× USB 2.0 (Type A):
¬ Capable of supplying up to 5V , 500mA power to an attached device; Optional BLE
¬ 3G/4G cellular modems
• Reset button: Factory reset
• DC48V power jack Visual Indicators
• For system status (Tri-color LED)
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running,no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing: System running, use for location of an AP
• For PSE status
¬ Orange on: PSE enabled, PD device online
¬ Orange flashing: PSE enabled, PD device offline
¬ Off: PSE disabled

Antenna
• AP1201H: Built-in 2×2:2 @ 2.4 GHz, 2×2:2 @ 5 GHz
¬ Two integrated dual-band omnidirectional antennas for 2×2 MIMO with maximum antenna gain of 4 dBi in 2.4 GHz and 6.3dBi in
5 GHz.

Receive sensitivity (per chain)
2.4 GHz 5 GHz
1 Mb/s -96
11 Mb/s -88
6 Mb/s -91 -92
54 Mb/s -74 -74
HT20 (MSC 0/8) -90 -91
HT20 (MSC 7/15) -71 -70
HT40 (MSC 0/8) -87 -87
HT40 (MSC 7/15) -68 -68
VHT20 (MSC 0) -90
VHT20 (MSC 8) -67
VHT40 (MSC 0) -87
VHT40 (MSC 9) -62
VHT80 (MCS0) -84
VHT80 (MCS9) -59

Maximum transmit power (per chain) ±2 dBm
2.4 GHz 5 GHz
1 Mb/s 18 dBm
11 Mb/s 18 dBm
6 Mb/s 18 dBm 18 dBm
54 Mb/s 15 dBm 15 dBm
HT20 (MSC 0/8) 18 dBm 18 dBm
HT20 (MSC 7/15) 15 dBm 17 dBm
HT40 (MSC 0/8) 18 dBm 18 dBm
HT40 (MSC 7/15) 14 dBm 14 dBm
VHT20 (MSC 0) 18 dBm
VHT20 (MSC 8) 13 dBm
VHT40 (MSC 0) 18 dBm
VHT40 (MSC 9) 13 dBm
VHT80 (MCS0) 18 dBm
VHT80 (MCS9) 12 dBm

Power
• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source:
¬ 48 V DC nominal, ± 5%
• Power over Ethernet (PoE):
¬ 48 V DC (nominal) 802.3af/ 802.3at compliant source
• Maximum (worst case) power consumption:
¬ 11 W (802.3af PoE with PSE function disabled);
¬ 25.5 W (802.3at PoE or DC, USB disabled and full 802.3af PSE);
¬25.5 W (802.3at PoE, USB enabled and PSE output power max 12 W)

Mounting
• The AP ships with a mounting plate to attach the AP to a single-gang wallbox (most international variations
covered).
• Optional mount kit for desk mount.

Environmental
• Operating:
¬ Temperature: 0° C to 45° C (+32° F to +113° F)
¬ Humidity: 5% to 95% non-condensing
• Storage and transportation:
¬ Temperature: -40° C to +70° C (-40° F to +158° F)

Dimensions/Weight
• Single AP excluding packing box and accessories:
¬ 95 mm (W) x 34.45 mm (D)x 161.5 mm (H) -3.74” (W)x 1.35” (D) x 6.35” (H)
¬ 239 g/0.53 lb
• Single AP including packing box and accessories:
¬ 115 mm (W) x 54 mm (D)x 182 mm (H) -4.52” (W) x 2.13” (D) x 7.17”(H)
¬ 417 g/0.92 lb

Reliability
• MTBF: 1,393,193h (159 years) at +25º C operating temperature Capacity
• Up to 8 SSID per radio (total 16 SSID)
• Support for up to 256 associated client devices per AP

Software features
• Up to 4K APs when managed by OV2500. There is no limit on the number of AP groups
• Up to 32 APs per web-managed cluster (only AP1201H)
• Up to 64 APs per web-managed cluster with mixed AP models (min qty of 4 AP12xx required)
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista
• Captive portal (Internal/ External)
• Guest self-registration (optional SMS notification) with OmniVista
• Internal user database
• RADIUSclient
• Guest social-login with OmniVista
• RADIUS proxy authentication OmniVista
• LDAP/AD proxy authentication OmniVista
• Wireless QoS

• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP)
• NTP server client
• ACL
• DHCP/DNS/NAT
• Wireless MESH P2P/P2MP
• Wireless Bridge
• Rogue AP location and containment
• Dedicated Scanning AP
• System log report
• SNMPv2
• SNMP Trap Notification with OmniVista
• Wireless attack detection with OmniVista
• Floor plan and heat map with OmniVista
• Stanley Healthcare / Aeroscout RTLS support

Security
• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, AES 128-256 bits
• 802.1X
• Dynamic WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS
• Portal page authentication
IEEE standard
• IEEE 802.11a/b/g/n/ac Wave 2
• IEEE 802.11e WMM
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.1Q (VLAN tagging)
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast Roaming Regulatory & certification
• CB Scheme Safety, cTUVus
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
• FCC
• CE marked
• RoHS, REACH, WEEE
• UL2043 plenum rating
• EMI and susceptibility (Class B)
• Wi-Fi CERTIFIED Wi-Fi 5, Enhanced Open™, Passpoint®
