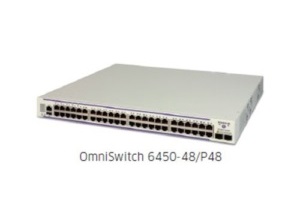

OMNI SWICTH 6450 -48/P48

Description

The Alcatel-Lucent OmniSwitch™ 6450 Stackable Fast Ethernet and Gigabit Ethernet LAN value switch family offers versatile, 24/48-port fixed configuration switches with optional upgrade paths for 10 Gigabit Ethernet (GigE) stacking, 10 GigE uplinks and metro Ethernet services.

Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6450 is an outstanding edge solution.  It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks.

POSITIONNING

• Edge of small-to-mid-sized networks
• Branch office enterprise and campus workgroups
• Residential and commercially managed services applications
• Service Provider networks deployments

PRODUCT FAMILY:

KEY BENEFITS

• Meets any customer configuration need and offers excellent investment protection and flexibility, as well as ease of deployment, operation and maintenance
• Provides outstanding performance when supporting real-time voice, data and video applications for converged scalable networks
• Ensures efficient power management, reduces operating expenses (OPEX) and lowers total cost of ownership (TCO) through low power consumption and dynamic PoE allocation, which delivers only the power needed by the attached device
• A field-upgradeable solution that makes the network highly available and reduces OPEX
• Fully secures the network at the edge at no additional cost
• Enterprise-wide cost reduction through hardware consolidation to achieve network segmentation and security without additional hardware installation
• Supports cost-effective installation and deployment with automated switch setup and configuration and end-to-end virtual LAN (VLAN) provisioning
• Simplifies metro Ethernet network OA&M for service providers

KEY FEATURES

• 24-port and 48-port, Power over Ethernet (PoE), non-PoE and 24-port fiber models with two fixed small form factor pluggable (SFP+) 10-G-ready interfaces
• Scalability from 24 to 384 Fast Ethernet and gigabit ports and 16 10 GigE ports
• Optional SFP+ stacking module
• Optional 10 GigE uplink license option
• Optional metro services feature license for service provider deployments
• Support for IEEE 802.3af as well as IEEE 802.3at-compliant PoE
• Support for Precision Timing Protocol (PTP) via IEEE 1588v2 “S” models only
• Internal AC or DC redundant power supplies

POSITIONNING

• Classroom and workgroup networks
• Small enterprise or branch office networks
• Commercial and residential managed
• services
• Service Provider networks deployments

PRODUCT FAMILY:

KEY BENEFITS

• Small form factor and fan less design (zero noise output) make the OmniSwitch 6450-10 models ideal for workgroup, library and classroom environments
• Start with the fast ethernet models (10L/P10L) and later migrate to gigabit user port speeds with license upgrade
• The –P10 PoE model offers 120W of PoE power and are 802.3at compliant.
• The –P10S offers 280W of PoE power, is 802.3at and 4 pair PoE compliant with Power over HDBaseT
• Create advanced managed services CPE when adding the Metro license option
• The low power consumption reduces operating expenses and cooling costs, lowering OPEX and resulting in faster return on investment (ROI)
• Leads the industry in price/feature-performance ratio and offers customers a cost-efficient advanced layer 2+ network technology solution either in fast ethernet or gigabit ethernet options
• Provides outstanding features and performance for supporting scalable, real-time voice, data and video applications for converged networks
• Allows existing AOS customers/users immediate familiarity with the product from day one, reducing their total cost of ownership (TCO) and training costs. New users may choose the method of switch access most beneficial to their needs
• Limited lifetime hardware warranty eliminates service program costs and ongoing service renewals, lowering TCO and allowing customers to reach ROI targets more quickly

KEY FEATURES

Versatile features and models

• Offers 10/P10 gigabit models or fast ethernet 10L/P10L models with upgrade path to gigabit speeds
• All models have small, optimized form factor and are fan-less (except the –P10S)
• Optional Metro Services feature license option for service provider deployments
• Support for IEEE 802.3af, IEEE 802.3at-compliant and 4 pair PoE compliant with Power over HDBaseT
• Internal AC power supply on all models
• IEEE 1588v2 Transparent Clock with the –P10S model

Management

• AOS field-proven software with management through web interface (WebView), command line interface (CLI) and Simple Network Management Protocol (SNMP)
• Ethernet OA&M support for service configuration and monitoring
• Support by Alcatel-Lucent OmniVista™ 2500 Network Management System (NMS)
• Alcatel-Lucent 5620 Service Aware Manager (SAM) applications for service providers

Security features

• Flexible device/user authentication with Alcatel-Lucent Access Guardian (IEEE 802.1x/MAC/captive portal) with Host Integrity Check (HIC)
• Advanced QoS and Access Control Lists (ACLs) for traffic control, including an embedded denial of service (DoS) engine to filter out unwanted traffic attacks
• Extensive support of AOS user-oriented features such as learned port security (LPS), port mapping, Dynamic Host Configuration Protocol (DHCP) binding tables, and unified network profile (UNP)

Performance and redundancy features

• Advanced Layer 2+ features with basic Layer 3 routing for both IPv4 and IPv6
• Triple speed (10/100/1000) user interfaces and GigE fiber interfaces (SFPs) supporting 100Base-X or 1000Base-X optical transceivers
• Wire-rate switching and routing performance
• High availability with virtual chassis concept, redundant stacking links, primary/secondary unit failover, hot-swappable power options and configuration rollback

Convergence

• Enhanced VoIP and video performance with policy-based QoS
• Future-ready support for multimedia applications with wire-rate multicast
• IEEE 802.3at PoE+ support for IP phones, wireless LAN (WLAN) access points and video cameras
