Stellar Access Point 1351
OAW-AP1351-RW – Alcatel-Lucent AP1351 Wi-Fi 6 Indoor Access Point :
- Tri radio, 2.4 + Dual 5 GHz, 4×4:4 + 8×8:8 + 4×4:4 802.11ax
- Integrated omni antenna
- 1 x 1 scanning and BLE radio
- 2 x multi-Gigabit 1/2.5/5/10 Gig ports, 802.3bt
Description

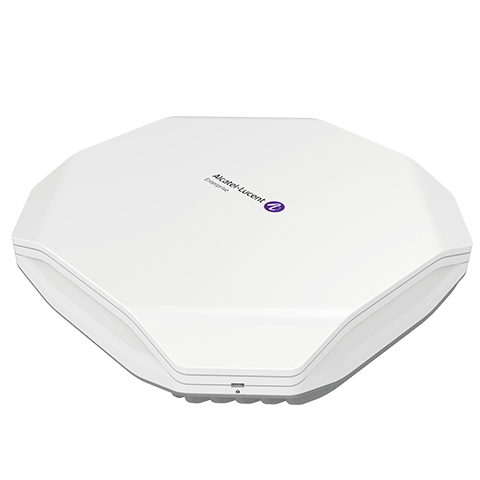

Wi-Fi 6 Alcatel-Lucent OmniAccess Stellar AP1351 Indoor Access Point (OAW-AP1351-RW)
| Model | AP1351 (OAW-AP1351-RW) |
| Radio specification | • AP type: Indoor Wi-Fi 6 (802.11ax) • Tri radio, 5 GHz High 8×8:8, 5 GHz Low 4×4:4 and 2.4 GHz 4×4:4 ¬ 5 GHz High: 8×8:8 up to 4.8 Gbps wireless data rate to individual 8SS HE80 or4SS HE160 802.11ax client devices ¬ 5 GHz Low: 4×4:4 up to 4.8 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices ¬ 2.4 GHz: 4×4:4 up to 1.147 Gbps wireless data rate to individual 4SS HE40 802.11ax client devices |
| Interfaces | • 2 x multi-Gigabit 1/2.5/5/10 Gig autosensing(RJ-45) ports, Eth0-Eth1, Power over Ethernet (PoE) 802.3bt compliant • 1 x USB 3.0 Type A (5V, 500mA) • Console • Reset button: Factory reset |
| Security | • Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys • 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE) • 802.1X • WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) • Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista • Portal page authentication |
| Antenna | • Integrated omni-directional antennas with maximum antenna gain of 3.9 dBi in 2.4 GHz, 3.9 dBi in 5 GHz H, 3.9 dBi in 5 GHz L and 3.5 dBi in BLE |
| Power | • Supports direct DC power and Power over Ethernet (PoE) • When both power sources are available, DC power takes priority over PoE • Direct DC source: 48 V DC nominal, ± 5% • Power over Ethernet (PoE): IEEE 802.3bt compliant source • Maximum (worst case) power consumption: ¬ 45W (input IEEE 802.3bt POE); Unrestricted functionality ¬ 42W (input dual IEEE 802.3at POE); The USB port is disabled ¬ 24W (input IEEE 802.3at POE); The USB port is disabled, Eth1 port is disabled, tri radio downgrade to 2*2 |
| Mounting | • Ceiling/wall mounting (Mount kit needs to be ordered separately) |
| Environmental | • Operating: ¬ Temperature: 0°C to 45°C ¬ Humidity: 5% to 95% non-condensing • Storage and transportation: ¬ Temperature: -40°C to +70°C |
| Dimensions/Weight | • Single AP excluding packing box and accessories: ¬ 260 mm (W) x 260 mm (D) x 60 mm (H) ¬ 2372 g • Single AP including packing box and accessories: ¬ 298 mm (W) x 317 mm (D) x 111 mm (H) ¬ 2828 g |
