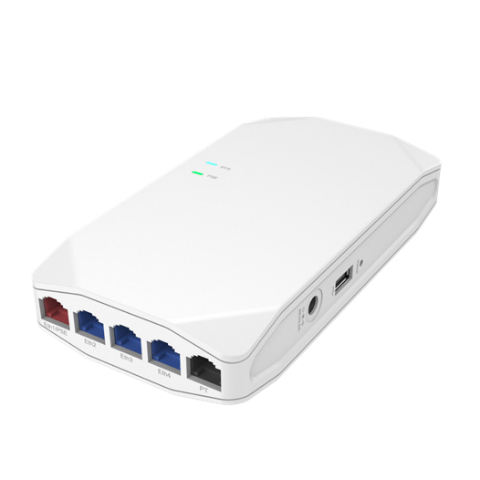

Stellar Access Point 1301H
OAW-AP1301H-RW – Alcatel-Lucent AP1301H Wi-Fi 6 Indoor Access Point
- Dual radio 2.4/5Ghz 2×2:2 802.11ax, omni antenna
- 1 x GbE uplink
- 4 x GbE downlink (1 PSE), RJ45 passthrough pair
- BLE/Zigbee radio
Description
Wi-Fi 6 Alcatel-Lucent OmniAccess Stellar AP1301H Indoor Access Point (OAW-AP1301H-RW)
| Model | AP1301H (OAW-AP1301H-RW) |
| Radio specifications | • AP type: Indoor • Dual Radio, 5 GHz 802.11ax 2×2:2 and 2.4 GHz 802.11ax 2×2:2 ¬ 5 GHz: 2×2:2 up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices ¬ 2.4 GHz: 2×2:2 up to 573Mbps wireless data rate to individual 2SS HE40 802.11ax client devices |
| Interfaces | • Uplink: 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE) 802.3at/af compliant • Downlink: 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE-PSE) 802.3af • Downlink: 3× 10/100/1000Base-T autosensing downlink port • Passive Pass through one pair, back and bottom • 1x USB 2.0 Type C (5V, 500mA) • Reset button: Factory reset |
| Visual indicators (Tri-colour LED) | • For system and radio status ¬ Red flashing: System abnormal, link down ¬ Red light: System startup ¬ Red and blue rotate flashing: System running, OS upgrading ¬ Blue light: System running, dual bands working ¬ Green flashing: System running, no SSID created ¬ Green light: System running, single band working ¬ Red, blue and green rotate flashing ¬ System running, use for location of an AP • PSE (single color, green) ¬ ON: PSE enabled ¬ OFF: PSE disabled, default |
| Security | • 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE) • 802.1X • WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) • Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista • Portal page authentication |
| Antenna | • AP1301H: 2×2:2 @ 2.4GHz, 2×2:2 @ 5GHz ¬ Integrated omni-directional antennas with peak antenna gain of 3.92dBi in 2.4 GHz and 4.41dBi in 5 GHz ¬ Integrated BLE omnidirectional antenna with peak gain of 3.2dBi |
| Power | • Supports direct DC power and Power over Ethernet (PoE) • When both power sources are available, DC power takes priority over PoE • Direct DC source: 48 V DC nominal, +/- 5% • Power over Ethernet (PoE): ¬ IEEE 802.3at/af source – 25W (input IEEE 802.3at PoE) – 12.7W (input IEEE 802.3af PoE), Eth1 PSE disabled |
| Mounting | • Ships with wall mounting (single gang) kit |
| Environmental | • Operating: ¬ Temperature: 0°C to 45°C ¬ Humidity: 5% to 95% non-condensing • Storage and transportation: Temperature: -40°C to +70°C |
| Dimensions/Weight | • Single AP excluding packing box and accessories: ¬ 86 mm (W) x 29 mm (D) x 162.5 mm (H) ¬ 320 g • Single AP including packing box and accessories: ¬ 115 mm (W) x 54 mm (D) x 182 mm (H) ¬ 500 g |
| Reliability | • MTBF: 1,314,000h (150 years) at +25ºC operating temperature |
| Capacity | • Up to 16 SSID per radio (total 32 SSID) • Up to 1024 associated client devices |
| IEEE standard | • IEEE 802.11a/b/g/n/ac/ax • IEEE 802.11e WMM, U-APSD • IEEE 802.11h, 802.11i, 802.11e QoS • IEEE 802.1Q (VLAN Tagging) • 802.11k Radio Resource Management • 802.11v BSS Transition Management • 802.11r Fast roaming |
